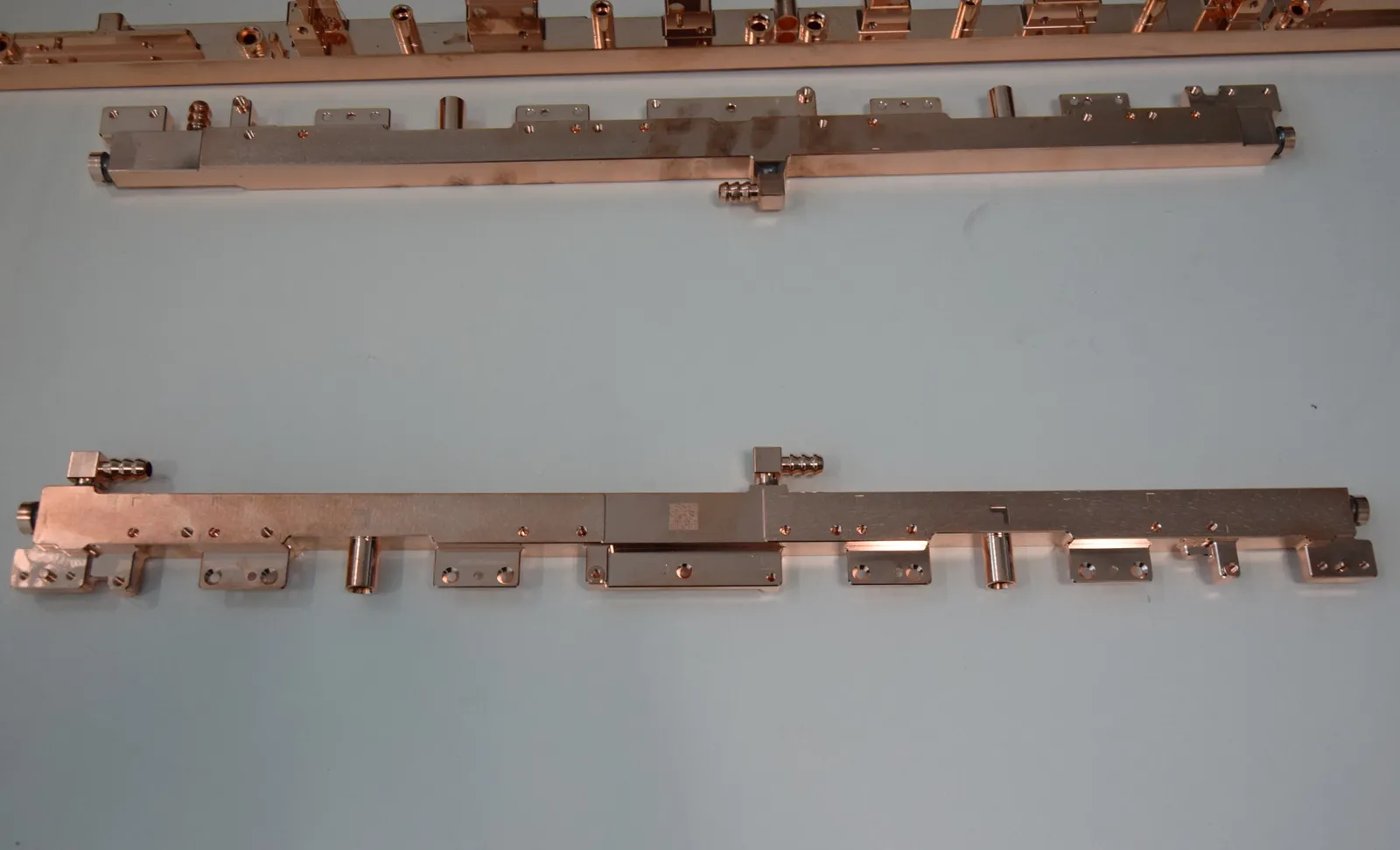

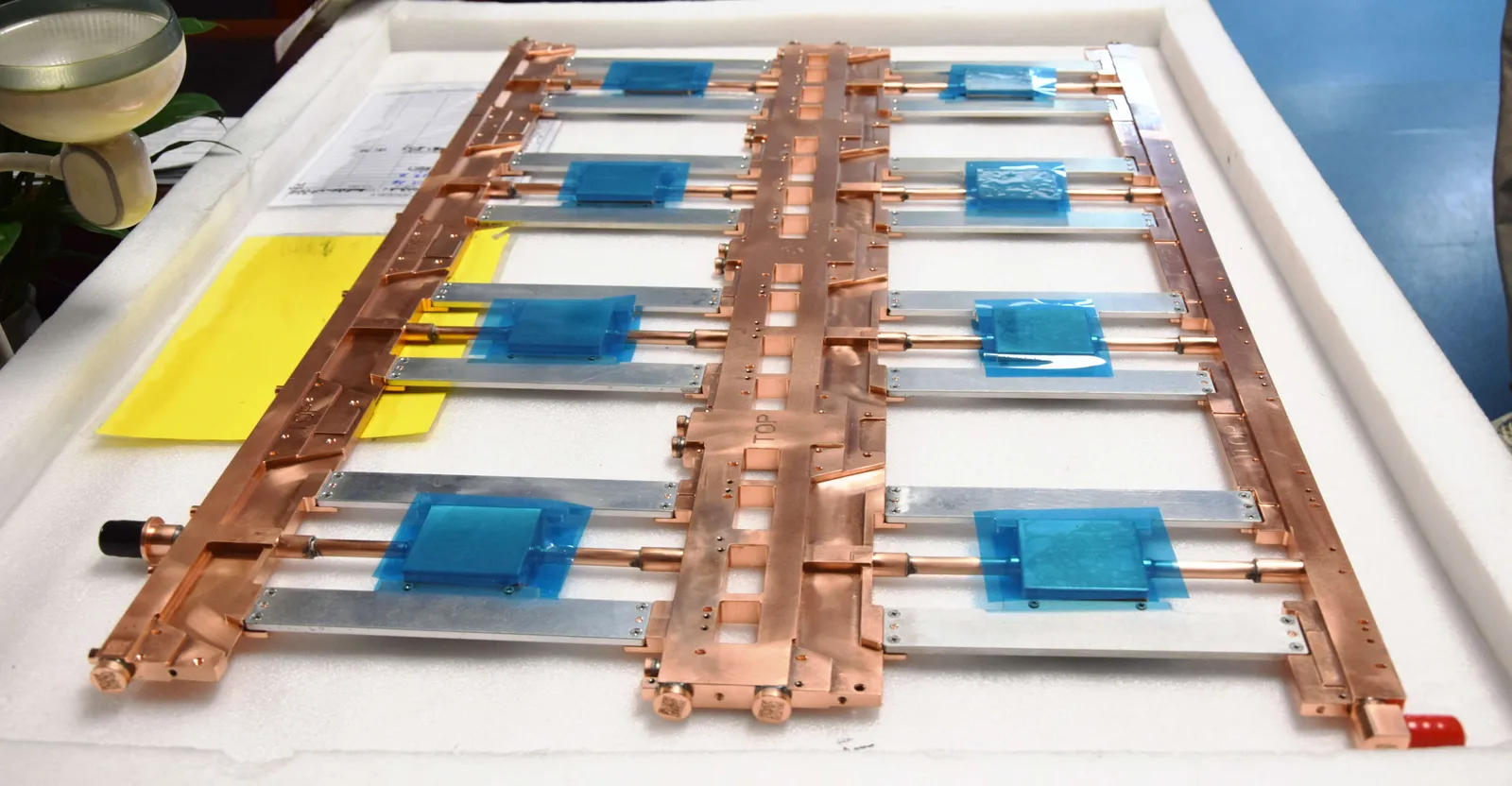

Liquid cooling manifold
Liquid Cooling Rack Manifolds are designed to streamline the connection between different cooling infrastructure organized for a manual connection at the front or back of the rack, providing a common connection point.
Technical Specifications
| Parameter | Details |
|---|---|
| Making process | CNC machining + epoxy bonding |
| Types of Welding Processes | TLP/FSW/Vacuum Brazing/Laser Welding |
| Size | Custom |
| Material | Aluminum (optiona), Copper (standard) |
| Operating Temperature | -40°C to 100°C (typical range; exact values depend on design) |
| Thermal Resistance | 0.05°C/W (typical; exact values depend on design) |
| Flow Rate | 1-5 L/min (typical; exact values depend on design) |
| Pressure Drop | <0.1 bar (typical; exact values depend on design) |
| Certifications | ISO9001:2015 certified |
Note: Specific thermal performance metrics may vary based on custom design. Please contact us for detailed specifications.
Properties of Machined Material
We offer multiple Materials for your choose, then manufacture the Best liquid cold plates to meet your application & working environment.
You can choose from:
Copper LCP - with excellent heat dissipation
Aluminum LCP - with excellent weight saving
Stainless steel cold Plate - with strong corrosion resistance
If you have any questions about the liquid cold plates & liquid cooling devices, please feel free to contact us for more information.
| Material | Thermal Conductivity (W/m·K) | Specific Gravity | Corrosion Resistance |
|---|---|---|---|
| Copper | 398 | 8.82 | Strong |
| Aluminum | 236 | 2.68 | Lightweight |
| Stainless | 17 | 7.93 | Comprehensive |
Materials determine coolants
The best combination of the plate's material and coolant we suggest as follow:
Copper:
- Pure water (managed by ion exchange unit)
- Industrial water, tap water (neutral, requires management of pH)
- Antifreeze (with rust inhibitor): Ethylene glycol + pure water/Propylene glycol + pure water
Aluminum :
- Pure water (managed by ion exchange unit)
- Antifreeze (with rust inhibitor):Ethylene glycol + pure water/Propylene glycol + pure water
Stainless:
- All kinds of coolants are available( Pure water, Industrial water, City water and Antifreeze)
